Applications:
This small diameter round lifting magnet is suitable for lifting and transporting single piece of thin steel plate and long steel plate.
Features:
1 .It is suitable for lifting and transporting single sheet of thin plate long plate.
2. Suitable for transporting and arrangement of pressure process of thin plate and tin making.
3. It can handle 1 pc of plate at a time and do subsidiary transporting for the cutting machine and welding operation.
4. It can do feeding operation for all kinds of machines, such as ting articles.
5. It can be used as magnetic tongs, magnetic hands on mechanical equipments, which can attract tiny articles.
6. When model selection, please pay attention to the plate thickness, width, length and weight, if the plate specification are too many, please learn the max and min data in order to make the optimum selection of magnet and quantity and control panel.

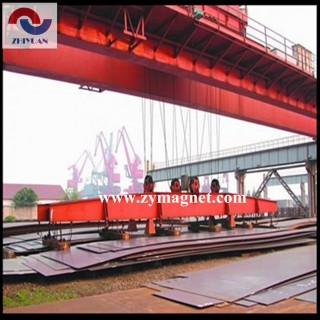

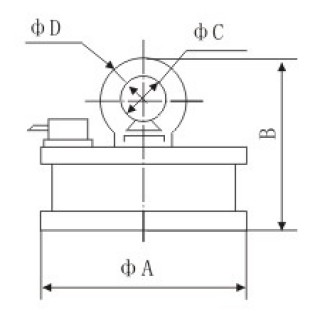

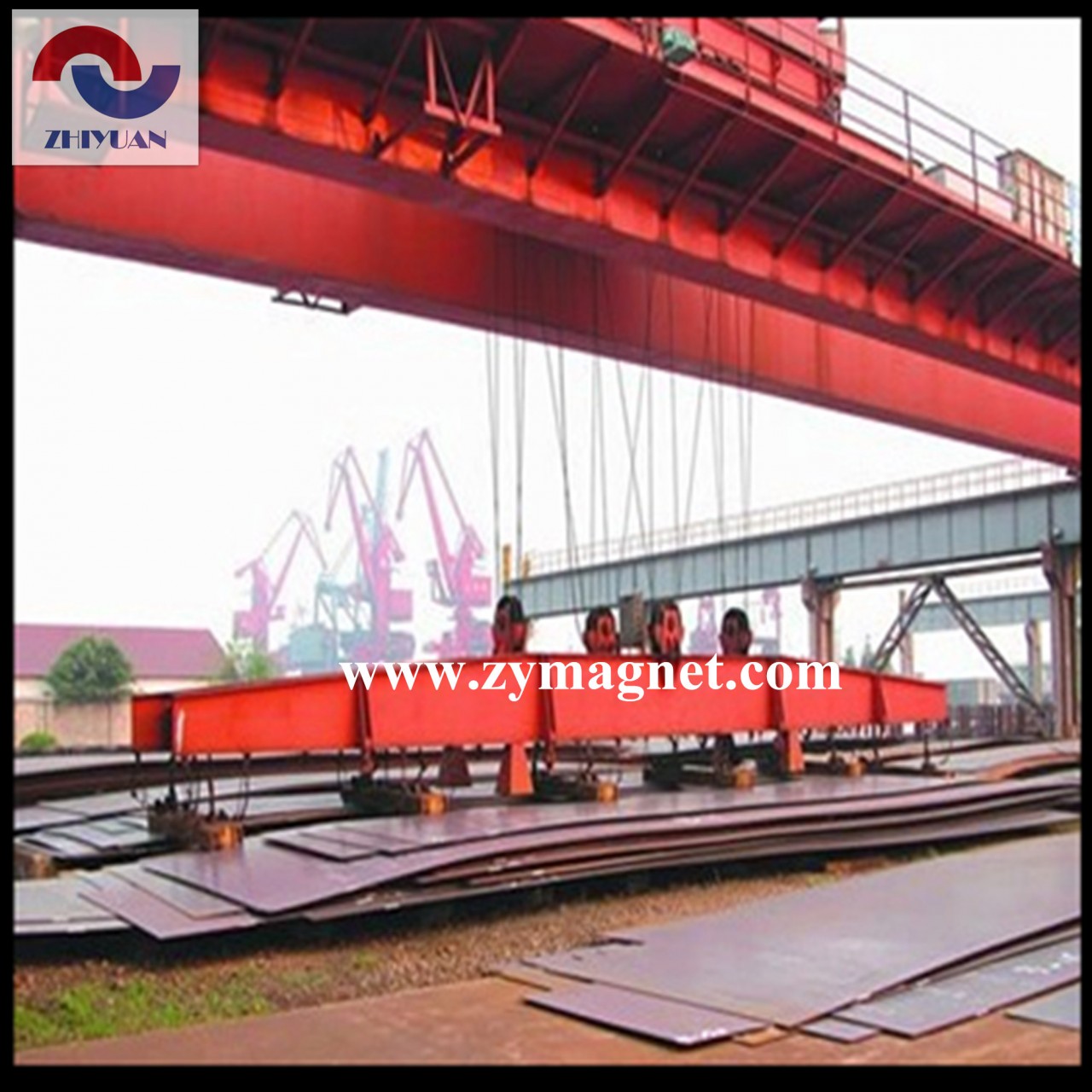

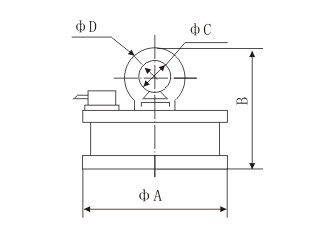

Overall dimension drawing:
Main Technical data DC 36-220V, TD-60%
|
Model
|
MW04-17T/1
|
MW04-22T/1
|
MW04-32T/1
|
MW04-40T/1
|
|
Overall dimension
(mm)
|
A
|
165
|
216
|
318
|
406
|
|
B
|
11 3
|
147
|
178
|
480
|
|
C
|
30
|
40
|
60
|
100/55
|
|
D
|
10
|
16
|
25
|
16
|
|
Weight (kg)
|
7
|
15
|
30
|
75
|
|
Power (KW)
|
O.10
|
O.20
|
O.25
|
O.40
|
|
Max. size of lift material by single unit (mm)
|
1200*1200
|
1400*1400
|
1600*1600
|
2500*2500
|
|
Average share size of lift material by multiple units
|
600*1200
|
700*1400
|
800*1600
|
1000*2500
|
|
Attracting power
|
Thickness of plate (mm)
|
3.2
|
6
|
6
|
10
|
10
|
20
|
12
|
32
|
|
Peripheric fixing (kg)
|
100
|
200
|
300
|
600
|
800
|
2000
|
1300
|
4000
|
|
