1. Applications:

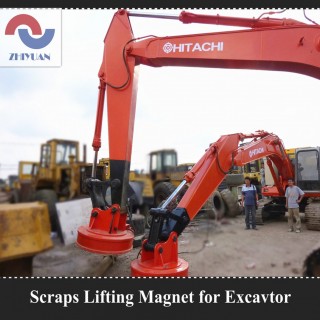

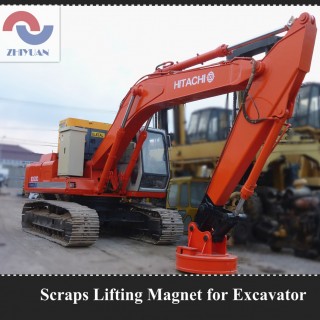

MW5 Series Lifting Electric Magnet is suitable for transferring cast ingots, steel balls and kinds of steel scraps. It can be used with excavator or other moving equipment to lift steel scraps.
2. Features:
2. 1 It adopts a special magnetic circuit design which has large air space and magnetism density. It is made of aluminum wire and the coil protection plate is made of the rolled high Mn steel plate that has good performance of wear-resistance and heat-proof. It also has the characteristics of light weight, low power consumption, high lifting capacity and long serving life.
2. 2 This series has fine insulation structure. The insulation treatments adopt the vacuum drying & glue filling, which has improved the electrical and mechanical performance of the coils .The insulation grade can reach class special C.
2.3 It generally adopts the control mode of constant voltage. It can further improve the lifting capacity if changing to adopt the control mode of over excitation.
2.4 With simple structure reliability, it is suitable for working with all kinds of lifting equipments.
3. Overall dimension drawing:
5. Technical data for normal temperature type (DC-220V; TD-60%)
|
Model
|
Current
( A)
|
Power ( KW)
|
Lifting capacity (kg)
|
Weight ( kg)
|
Overall dimension (mm)
|
|
Single steel ball
|
Packed steel ingots
|
Packed steel scraps
|
A
|
B
|
C
|
D
|
E
|
|
MW5-70L/1
|
15
|
3.3
|
2500
|
380/200
|
120/100
|
490
|
700
|
800
|
160
|
90
|
30
|
|
MW5-80L/1
|
18
|
3.96
|
3000
|
480/250
|
150/130
|
620
|
800
|
800
|
160
|
90
|
30
|
|
MW5-90L/1
|
26.6
|
5.85
|
4500
|
600/400
|
250/200
|
800
|
900
|
1090
|
200
|
125
|
40
|
|
MW5-110L/1
|
35
|
7.7
|
6500
|
1000/800
|
450/400
|
1350
|
1100
|
1140
|
220
|
150
|
45
|
|
MW5-120L/1
|
45.5
|
10
|
7500
|
1300/1000
|
600/500
|
1700
|
1200
|
1180
|
220
|
150
|
45
|
|
MW5-130L/1
|
54
|
11.9
|
8500
|
1400/1100
|
700/600
|
2060
|
1300
|
1240
|
250
|
175
|
50
|
|
MW5-150L/1
|
71.2
|
15.6
|
11000
|
1900/1500
|
1100/900
|
2830
|
1500
|
1250
|
350
|
210
|
60
|
|
MW5-165L/1
|
75
|
16.5
|
12500
|
2300/1800
|
1300/1100
|
3200
|
1650
|
1590
|
370
|
230
|
75
|
|
MW5-180L/1
|
102.4
|
22.5
|
14500
|
2750/2100
|
1600/1350
|
4230
|
1800
|
1490
|
370
|
230
|
75
|
|
MW5-210L/1
|
129
|
28.4
|
21000
|
3500/2800
|
2200/1850
|
7000
|
2100
|
1860
|
400
|
250
|
80
|
|
MW5-240L/1
|
154
|
33.9
|
26000
|
4800/3800
|
2850/2250
|
9000
|
2400
|
2020
|
450
|
280
|
90
|
|
