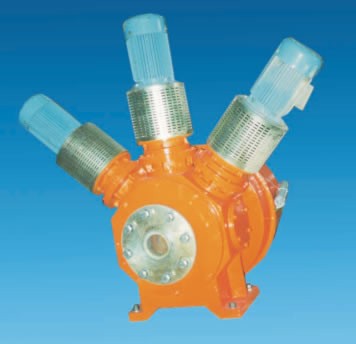

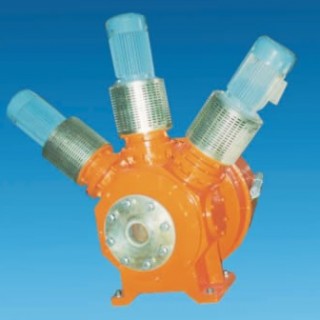

Hysteresis Cable Reel
|
|
|
|
MODEL：Hysteresis Cable Reel |
|
|
|
|
Hysteresis type cable reel is composed of three-phase asynchronous motor, single phase axle bearing, hysteresis coupler, reduction gear and cable reel roll. When the electrical device work with departing from the power source, the cable is dragged by the outside force, overcomes hysteresis torque of hysteresis coupler, at the same time the hysteresis coupler produces fractional slip (one-way axle bearing plays braker role), releases the the cable line, which coiling up on the cable reel device. When the electric device return back to the power source, the asynchronous motor drive one-way axle bearing and hysteresis coupler, drive the reel to collect the cable line by making driving force enlarged from speed reducing machine.

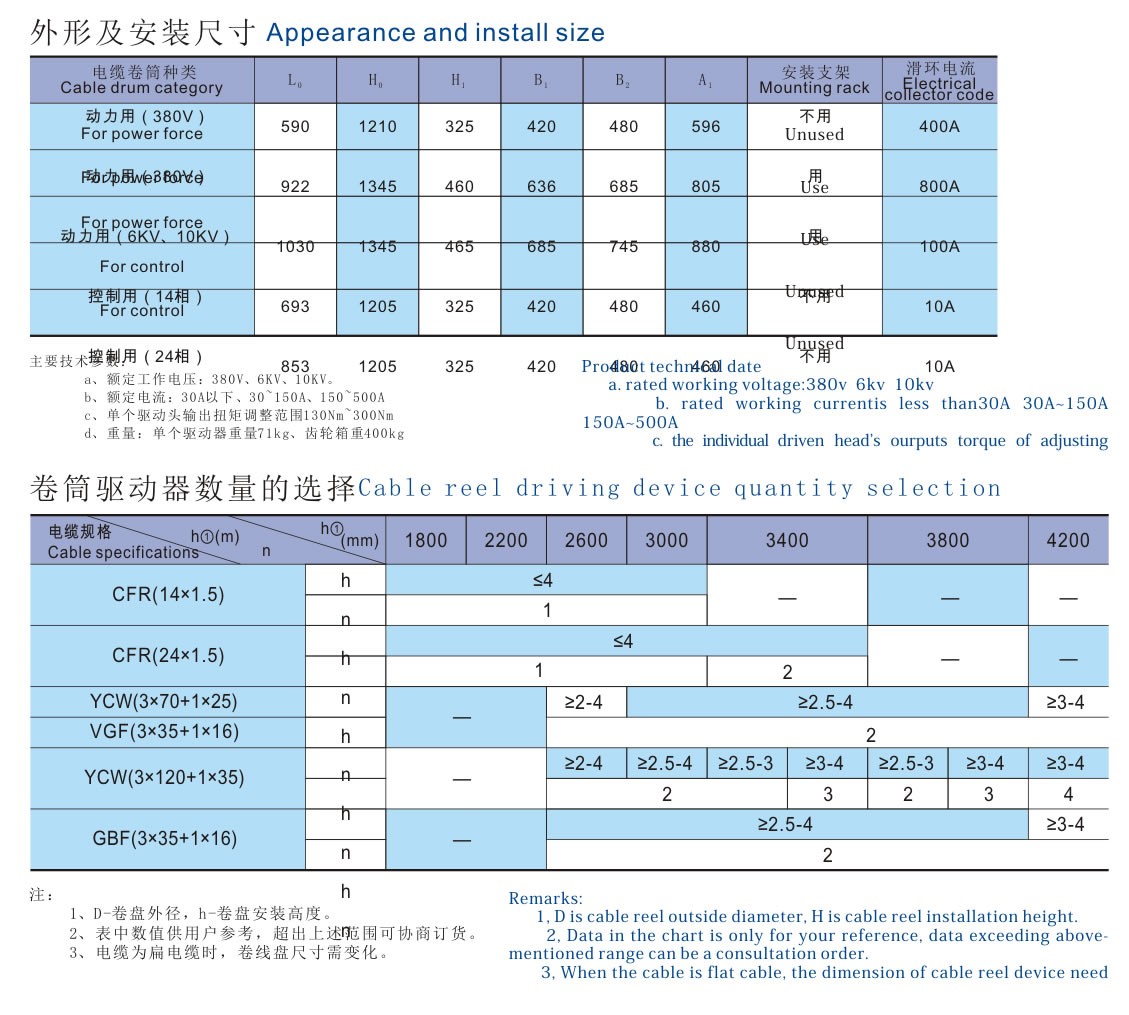

Model selection of Hysteresis type cable reel may relate to many factors, in order to make a quick, reasonable and economic model selection, please specify the following data.
●The operation speed of electric device
●Installation height of cable reel(the distance between installation platform and the earth)
●Cable line length (the electric device operation distance), rotation direction (when release the cable line turn left or right). Whether need limit switch. |
|
|
|
|
|
