1. Application:

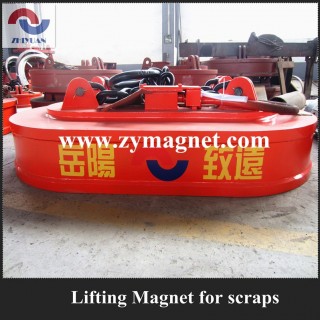

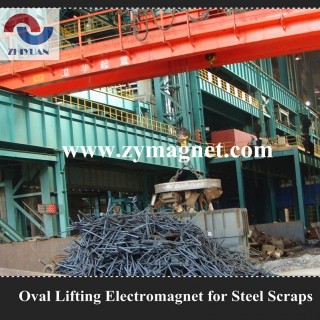

Scraps Lifting Electromagnet Series MW61 is suitable for lifting and transferring cast ingots and steel scraps in box-shaped cart.
2. Features:
2.1 It can load & unload steel scraps efficiently at narrow trunk-shaped container.
2.2 With deep magnetic field and strong magnetic force, it can handle substantive scraps at a time.
2.3 As chute dimensions in various steel companies are different, the following sample is just for your reference. And we can make the specific one as your requirements.

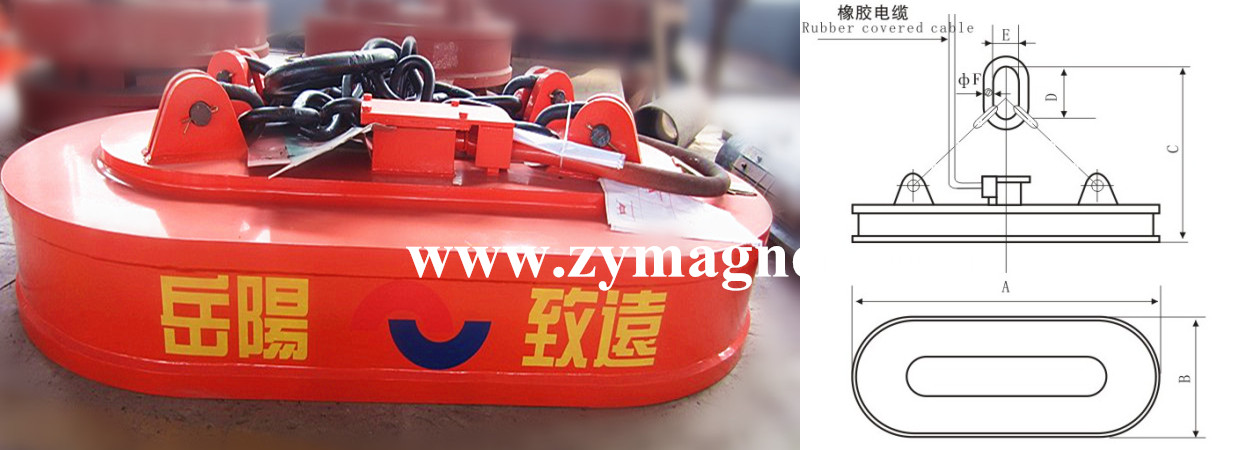

3. Overall dimension drawing:
4. Technical data for normal temperature type: TD-60%
|
Model
|
Voltage (V)
|
Current (A)
|
Power (KW)
|
Lifting capacity (kg)
|
Weight (kg)
|
Overall dimension (mm)
|
|
Packed steel ingots
|
Packed steel scraps
|
A
|
B
|
C
|
D
|
E
|
F
|
|
MW61-200150L/1-75
|
DC-
290/200
|
109.8/75.7
|
31.9/15.2
|
2200/1900
|
1000/800
|
4200
|
2000
|
1500
|
1300
|
250
|
180
|
70
|
|
MW61-300150L/1-75
|
195/135
|
56.6/27
|
3400/2850
|
1500/1250
|
5700
|
3000
|
1500
|
1570
|
310
|
210
|
60
|
|
MW61-180160L/1-75
|
113/78
|
32.7/15.5
|
2550/2000
|
1150/900
|
5000
|
1800
|
1600
|
1500
|
310
|
210
|
60
|
|
MW61-250200L/1-75
|
179/123
|
51.9/24.6
|
5000/4200
|
2300/1800
|
8400
|
2500
|
2000
|
2000
|
390
|
280
|
90
|
|
MW61-450250L/-175
|
267.3/184
|
77.53/36.8
|
12000/10000
|
5800/3500
|
22000
|
4500
|
2500
|
2000
|
390
|
280
|
90
|
|
MW61-150110L/1
|
DC-220
|
54
|
11.9
|
1500/1200
|
800/700
|
2500
|
1500
|
1100
|
1240
|
250
|
175
|
50
|
|
MW61-250150L/1
|
118.6
|
26
|
2800/2400
|
1300/1000
|
6500
|
2500
|
1500
|
2000
|
310
|
210
|
60
|
|
