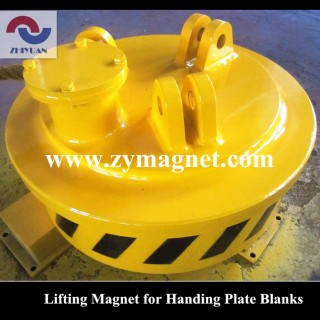

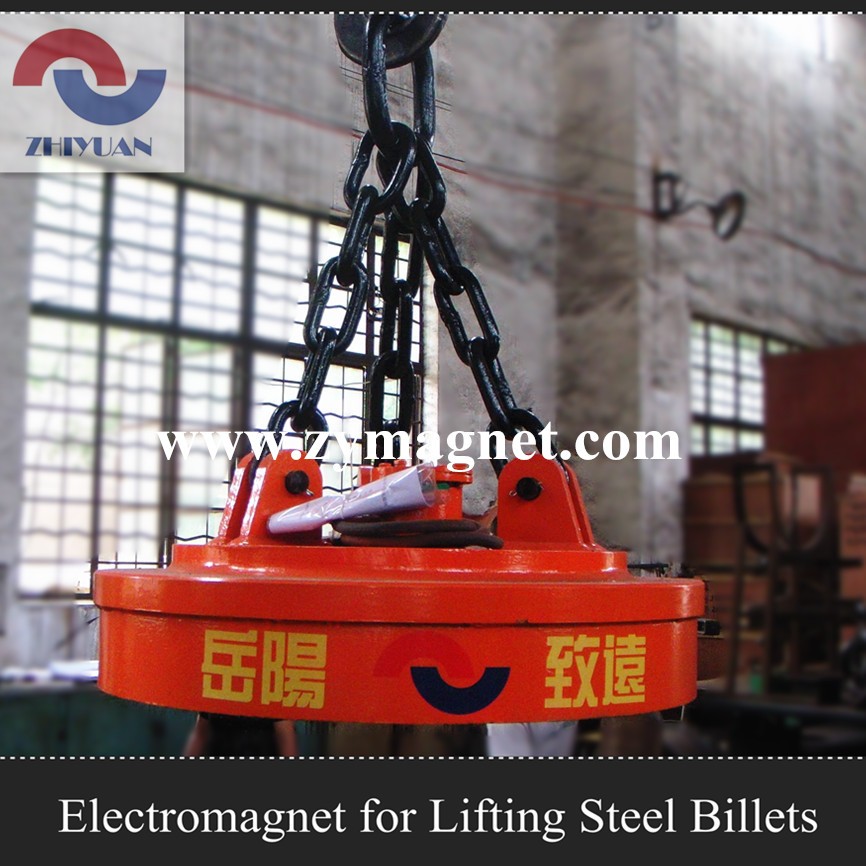

Lifting Magnet Series MW03 is specially designed for lifting and transporting large-sized ingots, continuous casting slabs and thick steel plates. It has the features of small power consumption, light weight, large lifting capacity, reliable operation etc..
When handling slabs length more than 6m, please adopt a combination of 2 units in order to avoid eccentricity declination, as slabs are unbending, so it is normal to adopt 2 units of magnets for such application.
2. Features:
2.1 Optimum magnetic circuit is designed according to the billets and it has the characteristic of big magnetic conductivity.
2.2 Coil is made of aluminum wire which has fine performance of heat-resistance. The body of the Lifting Magnet adopts the vacuum drying and glue filling, which can greatly improved the electrical and mechanical performance of the coils. The insulation grade can reach class C. So this series can work well under high temperature and worse working conditions.
3. Overall dimension drawing:
