Application:
MW73 Series Lifting Magnet is suitable for lifting, transporting and turning steel Slabs.
Features:
1. With the special magnetic circuit is specially designed for turning the slabs and can assure accurate and easy turning operations.It is best adopted in the operations of inspecting and arranging the up and under sides of slabs.
2.When using the crane with guided post, it can turn the slabs of 180° during transporting.
Main technical data: DC-200V, TD-60%
|
Model
|
MW73-7540L/G
|
MW73-
10055L/G
|
MW73-
15065L/G
|
MW73-
20090L/G
|
MW73-
140110L/G
|
MW73-200130L/G
|
|
Overall dimension
(mm)
|
A
|
750
|
1000
|
1500
|
1900
|
1400
|
2000
|
|
B
|
400
|
550
|
650
|
900
|
1100
|
1300
|
|
C
|
500
|
490
|
520
|
600
|
580
|
600
|
|
D
|
420
|
530
|
700
|
1000
|
700
|
1000
|
|
Weight (kg)
|
500
|
1000
|
1870
|
3300
|
2575
|
3500
|
|
Current (A)
|
10
|
11.2
|
19.8
|
27.3
|
17.1
|
34
|
|
Power (KW)
|
2.2
|
2.5
|
4.4
|
6.0
|
3.77
|
7.5
|
|
Lifting capacity of one unit (T)
|
6
|
10
|
15
|
40
|
28
|
45
|

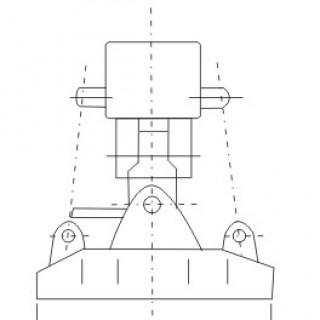

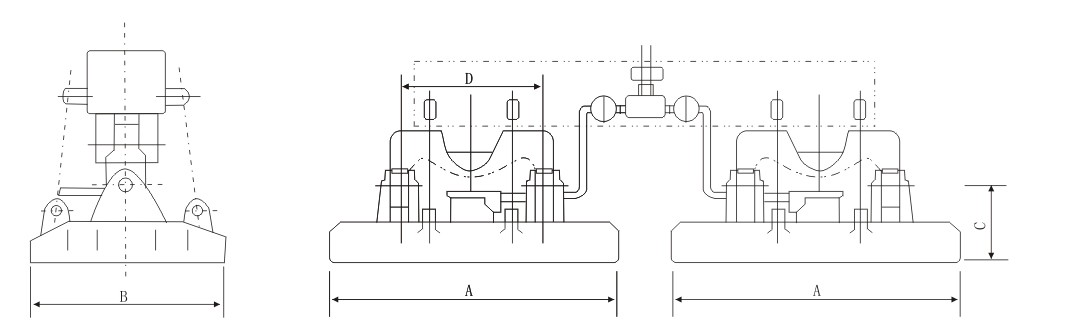

Overall Dimension Drawing:
|
