1. Applications:
MW5 Series Lifting Electric Magnet is suitable for transferring cast ingots, steel balls and kinds of steel scraps.
It is suitable forlifting high temperature steel scraps or lift steel scraps in high temperature environment. It is specially for used to lift steel scraps into furnace to make steel in steel plants. This magnet can handle the steel scraps under the temperature of 650°C.
2. Features:
2.1 The coil is made of aluminum wire and qualified insulation materials .It has fine insulation structure so that the coil is not easy to broke down.
2.2 The electromagnet adopts a special heat-resistance treatment so that it can handle scraps below 650℃.

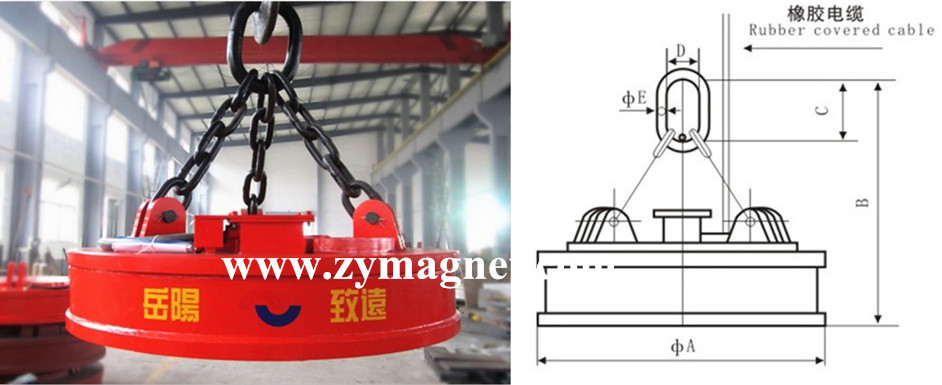

3. Overall dimension drawing:
4. Technical data for high temperature type DC-220V, TD-60%
|
Model
|
Current (A)
|
Power (KW)
|
Lifting capacity (kg)
|
Weight (kg)
|
Overall dimension (mm)
|
|
Single steel ball
|
Packed steel ingots
|
Packed steel scraps
|
A
|
B
|
C
|
D
|
E
|
|
MW5-70L/2
|
12.77
|
2.8
|
2500
|
380/200
|
120/100
|
520
|
700
|
820
|
160
|
90
|
30
|
|
MW5-80L/2
|
16.1
|
3.54
|
3000
|
480/250
|
150/130
|
650
|
800
|
800
|
160
|
90
|
30
|
|
MW5-90L/2
|
20.5
|
4.51
|
4500
|
600/400
|
250/200
|
900
|
900
|
1090
|
200
|
125
|
40
|
|
MW5-110L/2
|
27.5
|
6.05
|
6500
|
1000/800
|
450/400
|
1500
|
1100
|
1350
|
220
|
150
|
45
|
|
MW5-120L/2
|
33.6
|
7.4
|
7500
|
1300/1000
|
600/500
|
1800
|
1200
|
1280
|
220
|
150
|
45
|
|
MW5-130L/2
|
40.6
|
8.93
|
8500
|
1400/1100
|
700/600
|
2300
|
1300
|
1280
|
250
|
175
|
50
|
|
MW5-150L/2
|
51.4
|
11.3
|
11000
|
1900/1500
|
1100/900
|
3200
|
1500
|
1620
|
350
|
210
|
60
|
|
MW5-165L/2
|
60.6
|
13.3
|
12500
|
2300/1800
|
1300/1100
|
3500
|
1650
|
1630
|
370
|
230
|
75
|
|
MW5-180L/2
|
95
|
20.9
|
14500
|
2750/2100
|
1600/1350
|
4500
|
1800
|
1510
|
370
|
230
|
75
|
|
MW5-210L/2
|
104
|
22.91
|
21000
|
3500/2800
|
2200/1850
|
7400
|
2100
|
1910
|
400
|
250
|
80
|
|
MW5-240L/2
|
118.6
|
26
|
26000
|
4800/3800
|
2850/2250
|
9800
|
2400
|
2080
|
450
|
280
|
90
|
|
