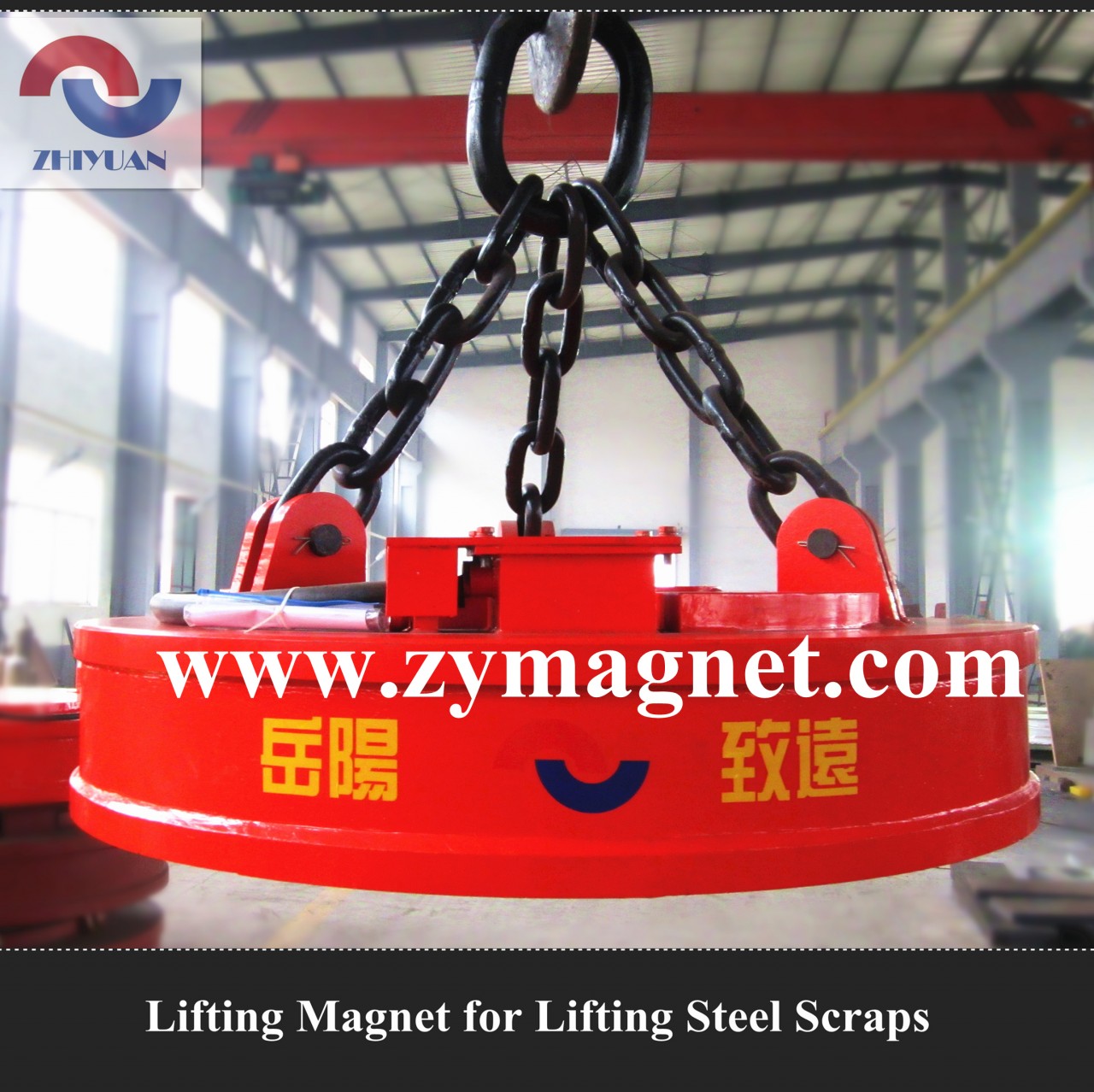

MW5 Standard Series Lifting Electromagnet for Handling Scraps
MODEL：MW5 Standard Series Lifting Electromagnet for Handling Scraps
1. Applications:

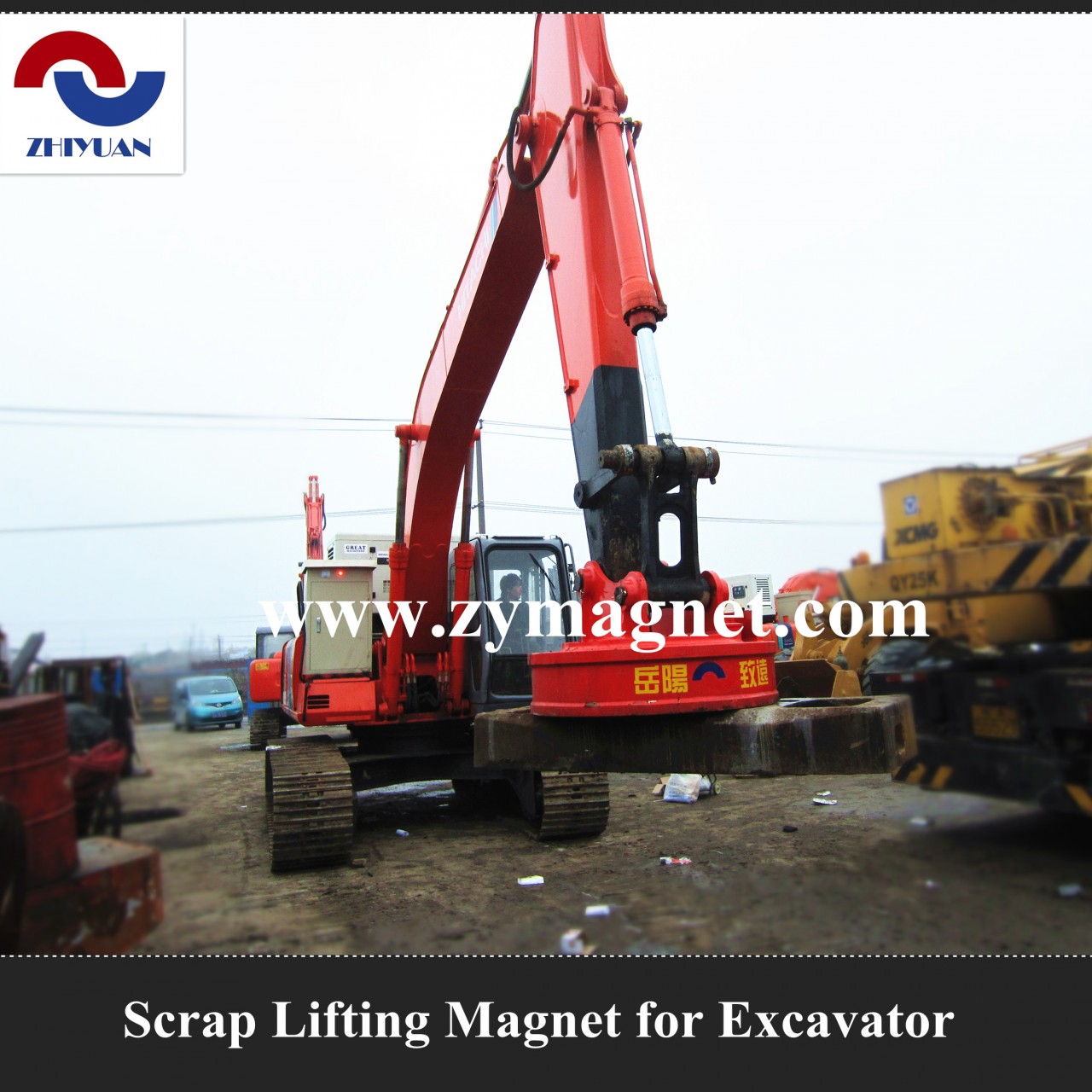

MW5 Series Lifting Electric Magnet is suitable for transferring cast ingots, steel balls and kinds of steel scraps.
2. Features:
2. 1 It adopts a special magnetic circuit design which has large air space and magnetism density. It is made of aluminum wire and the coil protection plate is made of the rolled high Mn steel plate that has good performance of wear-resistance and heat-proof. It also has the characteristics of light weight, low power consumption, high lifting capacity and long serving life.
2. 2 This series has fine insulation structure. The insulation treatments adopt the vacuum drying & glue filling, which has improved the electrical and mechanical performance of the coils .The insulation grade can reach class special C.
2.3 It generally adopts the control mode of constant voltage. It can further improve the lifting capacity if changing to adopt the control mode of over excitation.
2.4 With simple structure reliability, it is suitable for working with all kinds of lifting equipments.
3. Three types for option:
3.1 Normal temperature type (DC-220V TD-60%): for lifting normal temperature steel scraps.
3.2 High temperature type (DC-220V TD-60%): for lifting high temperature steel scraps or lift steel scraps in high temperature environment. It is specially for used to lift steel scraps into furnace to make steel in steel plants. This magnet can handle the steel scraps under the temperature of 650°C.
3.3 High frequency type (DC-220V TD-75%): for lifting normal temperature steel scraps in high frequency use. It can be operated more efficiently and frequently since the duty cycle is up to 75%.
The over-excitation control system (DC350/DC290V/DC-200V) is also available for large size magnet of this kind, in order to quicken the current, increasing speed and to exert stronger lifting capacity.

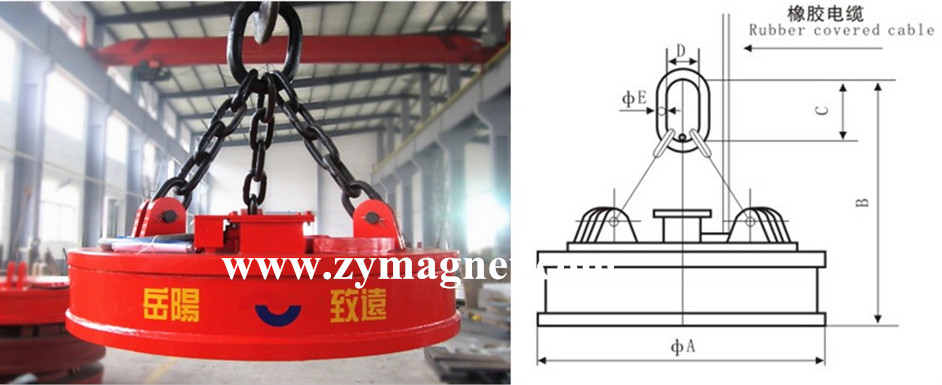

4. Overall dimension drawing:
5. Technical data for normal temperature type: (DC-220V, TD-60%)
Model
Current
( A)
Power ( KW)
Lifting capacity (kg)
Weight ( kg)
Overall dimension (mm)
Single steel ball
Packed steel ingots
Packed steel scraps
A
B
C
D
E
MW5-70L/1
15
3.3
2500
380/200
120/100
490
700
800
160
90
30
MW5-80L/1
18
3.96
3000
480/250
150/130
620
800
800
160
90
30
MW5-90L/1
26.6
5.85
4500
600/400
250/200
800
900
1090
200
125
40
MW5-110L/1
35
7.7
6500
1000/800
450/400
1350
1100
1140
220
150
45
MW5-120L/1
45.5
10
7500
1300/1000
600/500
1700
1200
1180
220
150
45
MW5-130L/1
54
11.9
8500
1400/1100
700/600
2060
1300
1240
250
175
50
MW5-150L/1
71.2
15.6
11000
1900/1500
1100/900
2830
1500
1250
350
210
60
MW5-165L/1
75
16.5
12500
2300/1800
1300/1100
3200
1650
1590
370
230
75
MW5-180L/1
102.4
22.5
14500
2750/2100
1600/1350
4230
1800
1490
370
230
75
MW5-210L/1
129
28.4
21000
3500/2800
2200/1850
7000
2100
1860
400
250
80
MW5-240L/1
154
33.9
26000
4800/3800
2850/2250
9000
2400
2020
450
280
90
Note: The technical data of lifting electromagnet used for diving is the same as that of the normal temperature type of electromagnet.
