1. Applications:

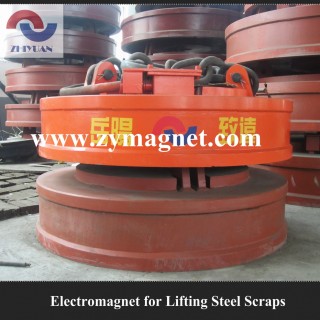

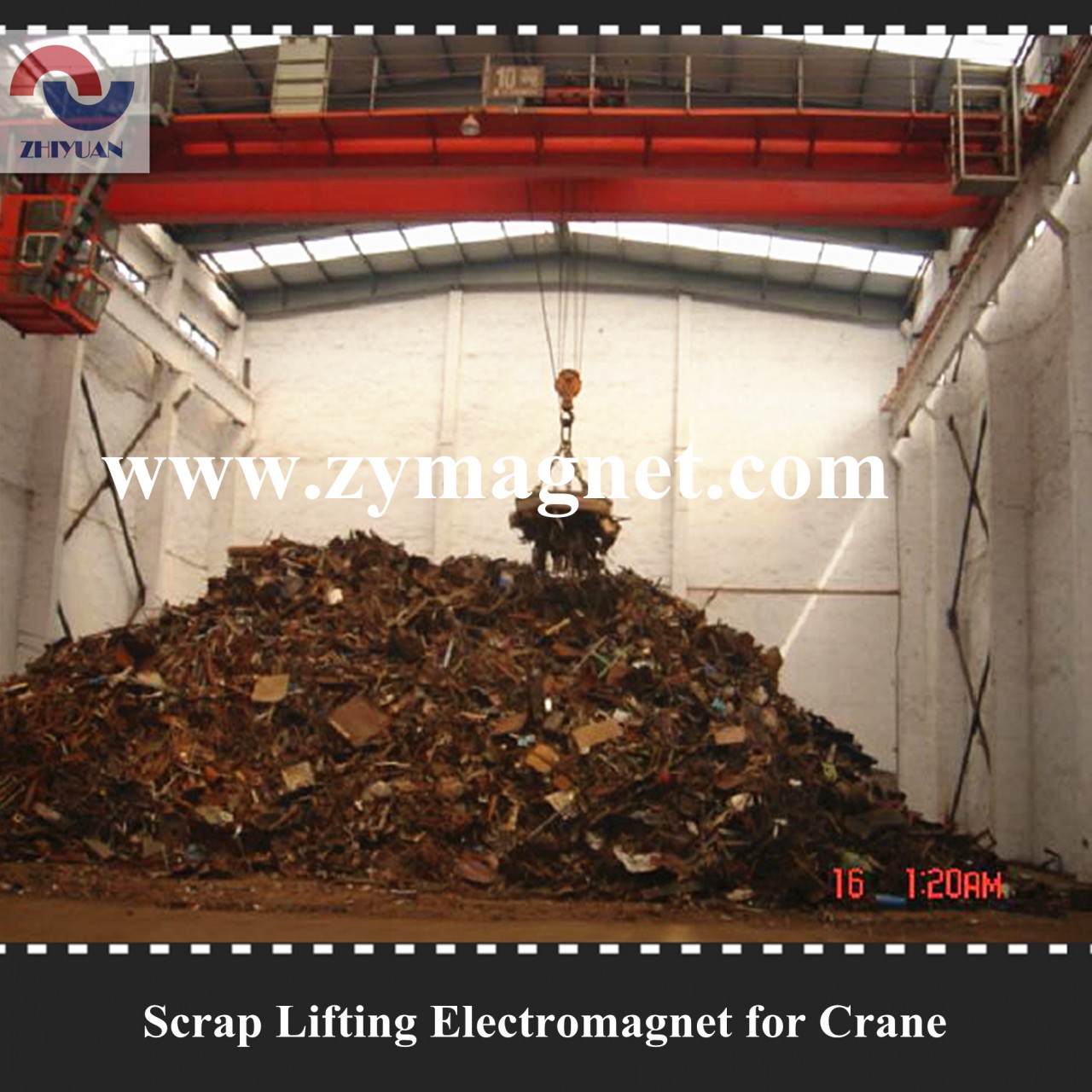

MW5 Series High Frequency Type Lifting Electromagnet for lifting normal temperature steel scraps in high frequency use. It can be operated more efficiently and frequently since the duty cycle is up to 75%.
The over-excitation control system (DC350/DC290V/DC-200V) is also available for large size magnet of this kind, in order to quicken the current, increasing speed and to exert stronger lifting capacity.
2. Features:
2.1 Duty cycle 75% with high operation frequency. The working effciency and operation speed have greatly improved comparing with the standard serise.
2.2 It adopts the control mode of strong excitation (DC-290/V-200V), which can improve the lifting capacity.
2.3 Large-sized electromagnet can adpot the control mode of over excition(DC-350/DC-290/DC-200V), which can increase the current speed and play stronger lifting capacity.
3. Overall dimension drawing:
4. Technical data for high frequency type DC-220V; TD-75%
|
Model
|
Current
(A)
|
Power (KW)
|
Lifting capacity (kg)
|
Weight (kg)
|
Overall dimension (mm)
|
|
Single steel ball
|
Packed steel ingots
|
Packed steel scraps
|
A
|
B
|
C
|
D
|
E
|
|
MW5-110L/1-75
|
27.6
|
6.07
|
6500
|
1000/800
|
450/400
|
1500
|
1100
|
1270
|
220
|
150
|
45
|
|
MW5-120L/1-75
|
33.6
|
7.4
|
7500
|
1300/1000
|
600/500
|
1850
|
1200
|
1220
|
220
|
150
|
45
|
|
MW5-130L/1-75
|
40.7
|
8.95
|
8500
|
1400/1100
|
700/600
|
2280
|
1300
|
1290
|
250
|
175
|
50
|
|
MW5-150L/1-75
|
51.4
|
11.3
|
11000
|
1900/1500
|
1100/900
|
3180
|
1500
|
1360
|
350
|
210
|
60
|
|
MW5-165L/1-75
|
55.6
|
12.2
|
12500
|
2300/1800
|
1300/1100
|
3840
|
1650
|
1670
|
370
|
230
|
75
|
|
MW5-180L/1-75
|
73.9
|
16.3
|
14500
|
2750/2100
|
1600/1350
|
4690
|
1800
|
1600
|
370
|
230
|
75
|
|
MW5-210L/1-75
|
98.5
|
21.7
|
21000
|
3500/2800
|
2200/1850
|
7500
|
2100
|
1900
|
400
|
250
|
80
|
|
MW5-240L/1-75
|
117.6
|
25.9
|
26000
|
4800/3800
|
2850/2250
|
9800
|
2400
|
2100
|
450
|
280
|
90
|
|
